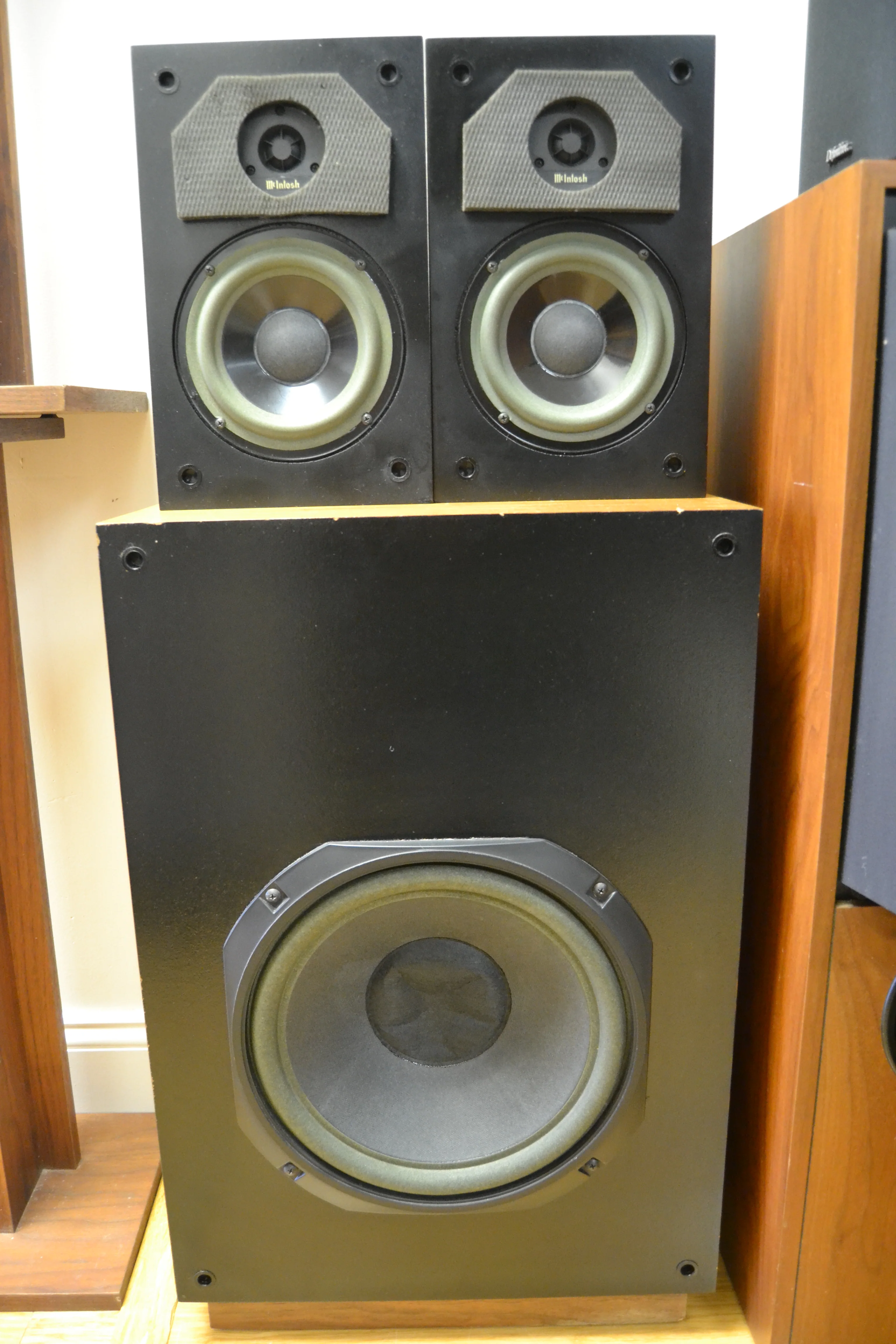

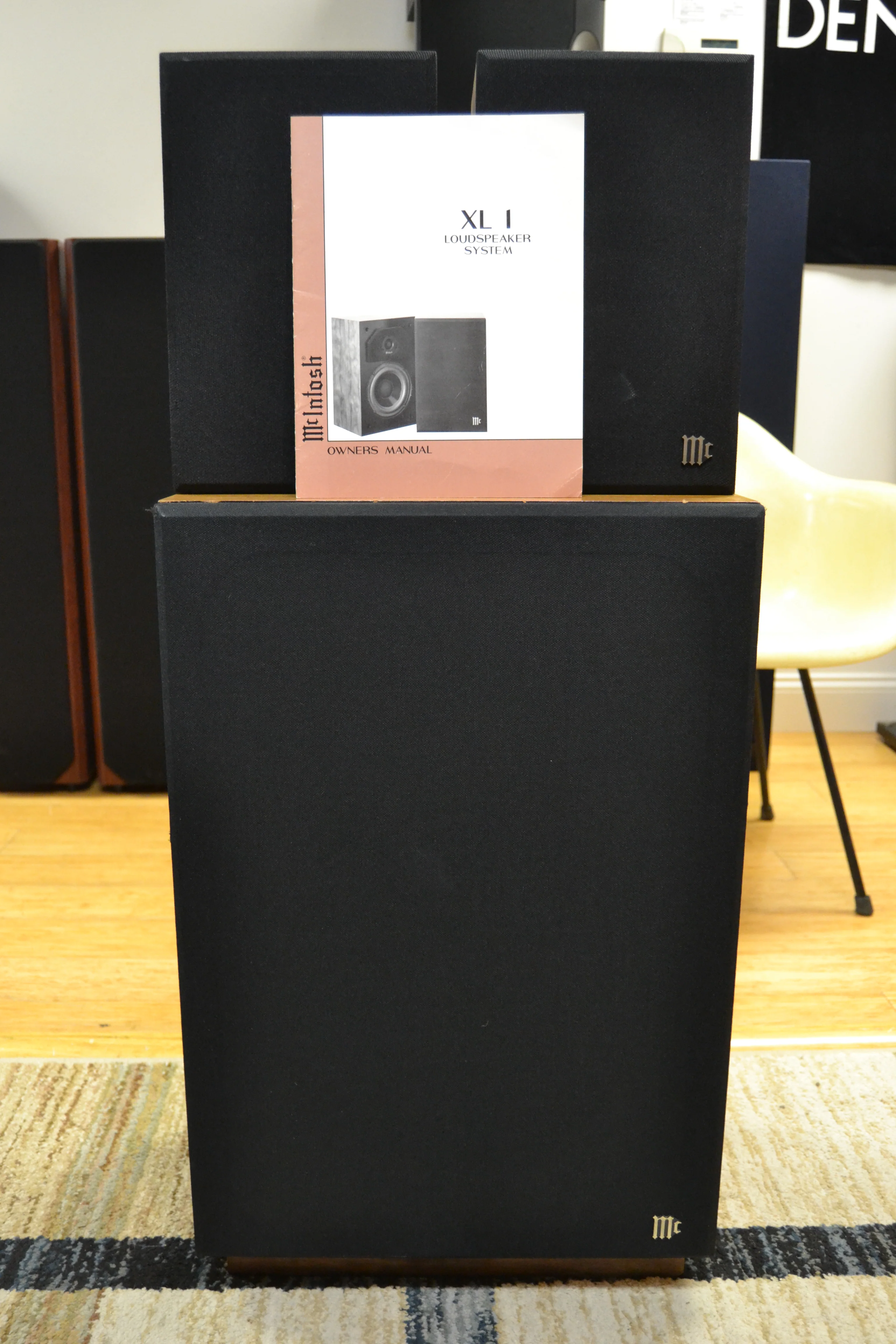

McIntosh XL-1 Speaker System & XL-1W Subwoofer * Manual
The McIntosh XL-1 is a 2-way bookshelf speaker system produced around 1987, featuring a 6.5-inch woofer and 1-inch tweeter in a sealed enclosure. Key specs include 8-ohm nominal impedance, 85 dB sensitivity, and a frequency response of 70 - 20,000 Hz, with dimensions of 21x33x18 cm. They are designed for high-quality, compact, efficient sound reproduction.
McIntosh XL-1 Technical Specifications
- Type: 2-way, 2-driver loudspeaker system
- Frequency Response: 70Hz to 20kHz (some models may vary, with similar vintage units reporting 38Hz - 20,000Hz)
- Impedance: 8 Ohm Nominal
- Sensitivity: 85 dB
- Power Rating: 125 Watts RMS
- Drivers: 6.5" Woofer (Seas P17RCD) with polypropylene cone, 1" Tweeter
- Enclosure: Sealed Box
- Dimensions: 21 x 33 x 18 cm (approx. 8.25" W x 13" H x 7" D)
- Finish: Walnut
Features & Design
- Woofer: The 6.5-inch woofer is designed with a reverse-polarized magnet glued to the back plate, which reduces the stray magnetic field to allow placement near TV sets without causing color distortion.
- Structure: They are designed with a cast metal basket and a sealed cabinet.
- Placement: Generally, these are placed on stands or shelves
The McIntosh XL-1W is a passive, walnut-finished bass speaker (subwoofer) designed to complement the smaller XL-1 bookshelf speakers, featuring a single 12-inch dual-voice coil woofer. It has a 20Hz to 150Hz frequency response, 250-watt peak power rating, 85dB/W/m sensitivity, and 8-ohm impedance.
Key Specifications of the XL-1W:
- Woofer: 12" McIntosh dual voice coil
- Frequency Response: 20Hz - 150Hz
- Power Rating: 250W Peak (100W nominal per)
- Impedance: 8 ohms
- Output Sensitivity: 85dB/watt/meter
- Crossover Frequencies: 90Hz (each channel)
- Dimensions: 27-7/32" H, 17-1/2" W, 11-3/4" D
- Weight: 62 lb
- Protection: Fuse for each channel
$500.00
McIntosh XL-1 Speaker System & XL-1W Subwoofer * Manual—
$500.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The McIntosh XL-1 is a 2-way bookshelf speaker system produced around 1987, featuring a 6.5-inch woofer and 1-inch tweeter in a sealed enclosure. Key specs include 8-ohm nominal impedance, 85 dB sensitivity, and a frequency response of 70 - 20,000 Hz, with dimensions of 21x33x18 cm. They are designed for high-quality, compact, efficient sound reproduction.
McIntosh XL-1 Technical Specifications
- Type: 2-way, 2-driver loudspeaker system
- Frequency Response: 70Hz to 20kHz (some models may vary, with similar vintage units reporting 38Hz - 20,000Hz)
- Impedance: 8 Ohm Nominal
- Sensitivity: 85 dB
- Power Rating: 125 Watts RMS
- Drivers: 6.5" Woofer (Seas P17RCD) with polypropylene cone, 1" Tweeter
- Enclosure: Sealed Box
- Dimensions: 21 x 33 x 18 cm (approx. 8.25" W x 13" H x 7" D)
- Finish: Walnut
Features & Design
- Woofer: The 6.5-inch woofer is designed with a reverse-polarized magnet glued to the back plate, which reduces the stray magnetic field to allow placement near TV sets without causing color distortion.
- Structure: They are designed with a cast metal basket and a sealed cabinet.
- Placement: Generally, these are placed on stands or shelves
The McIntosh XL-1W is a passive, walnut-finished bass speaker (subwoofer) designed to complement the smaller XL-1 bookshelf speakers, featuring a single 12-inch dual-voice coil woofer. It has a 20Hz to 150Hz frequency response, 250-watt peak power rating, 85dB/W/m sensitivity, and 8-ohm impedance.
Key Specifications of the XL-1W:
- Woofer: 12" McIntosh dual voice coil
- Frequency Response: 20Hz - 150Hz
- Power Rating: 250W Peak (100W nominal per)
- Impedance: 8 ohms
- Output Sensitivity: 85dB/watt/meter
- Crossover Frequencies: 90Hz (each channel)
- Dimensions: 27-7/32" H, 17-1/2" W, 11-3/4" D
- Weight: 62 lb
- Protection: Fuse for each channel
