JBL SVA 1500 Bookshelf Horn Loaded Speakers

SVA Series bookshelf speaker system.

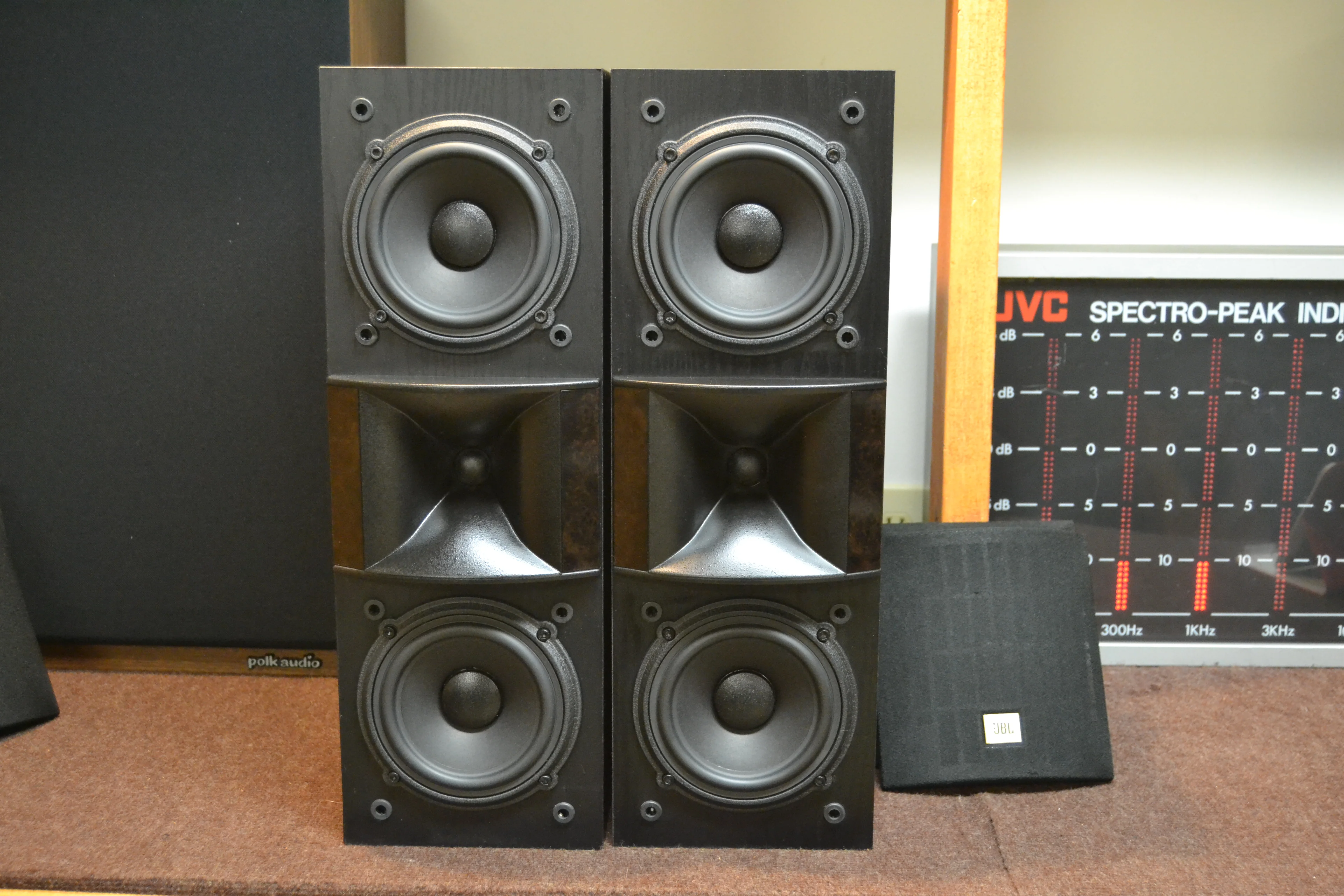

The SVA Series uses a symmetrical vertical array (vertical virtual coaxial) system.
This system achieves both a wide frequency range and accurate sound image localization by the layout of a biradial horn and tweeter sandwiched between two woofers.

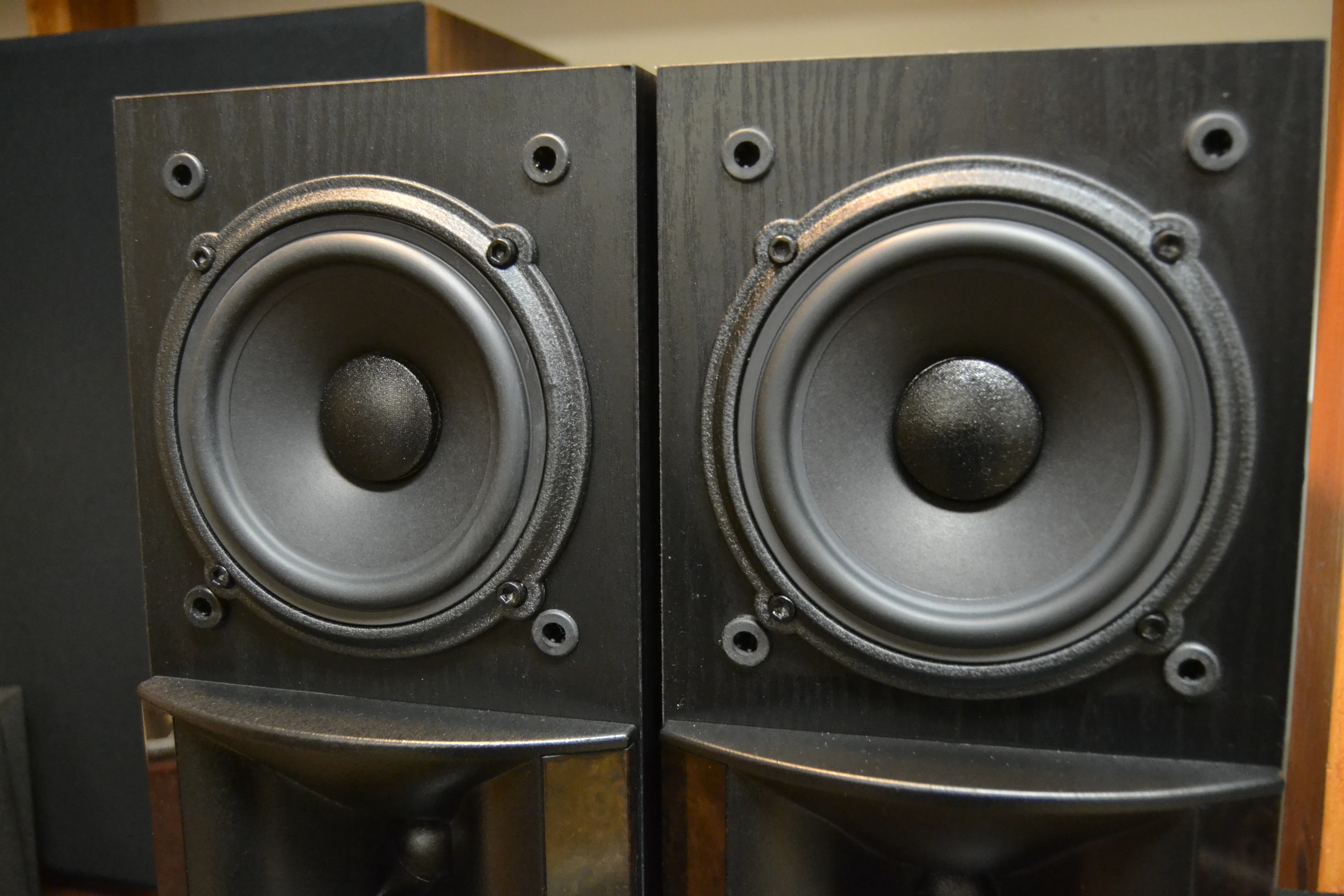

Equipped with 2 newly designed 13.3 cm cone type woofers in the low range.
Paper cone is used for the diaphragm.

A horn type tweeter is installed in the high range.

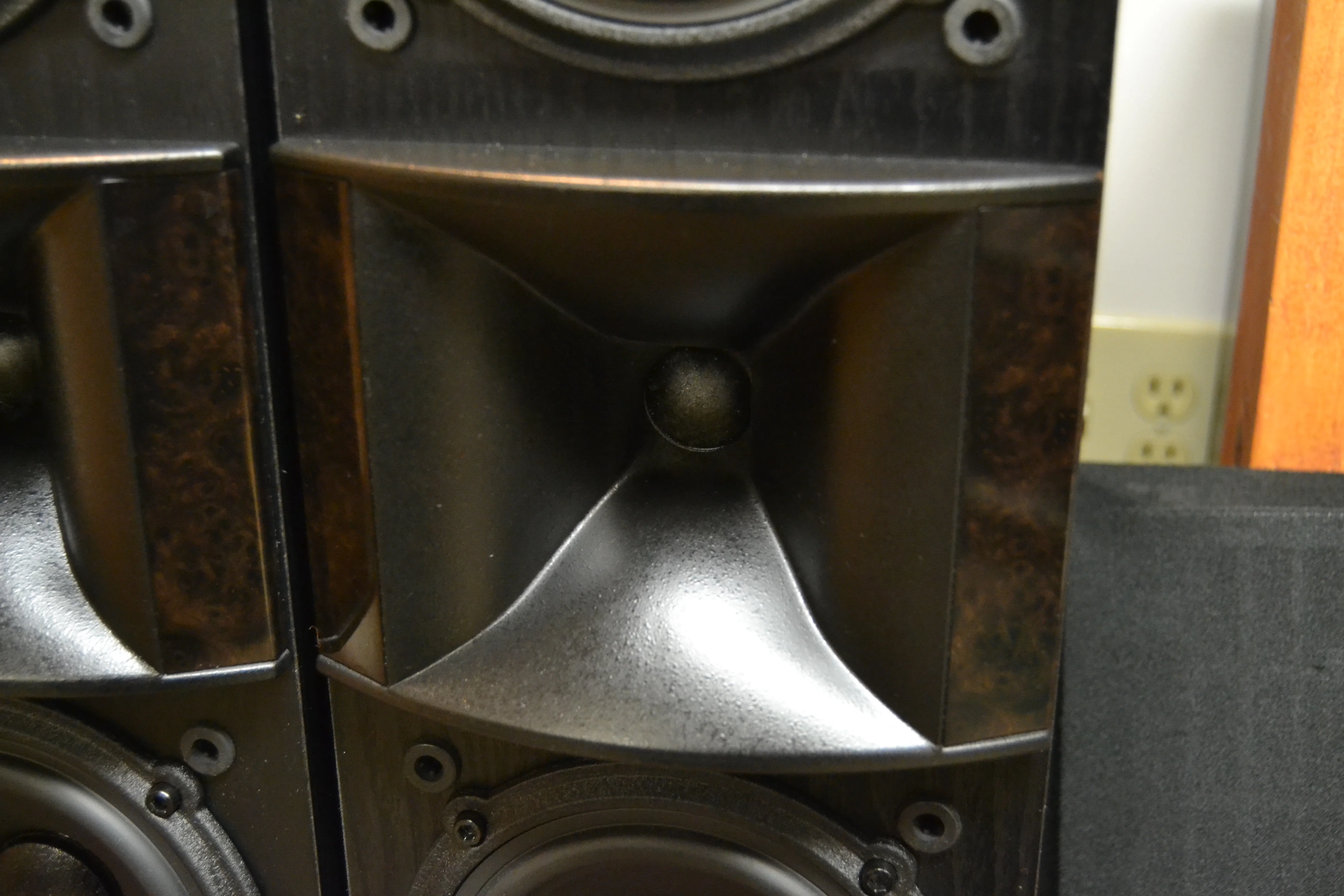

A biradial horn is used in the horn section to ensure good directional characteristics with a wide service area and a soft dome type diaphragm.

It has a magnetic shield design.

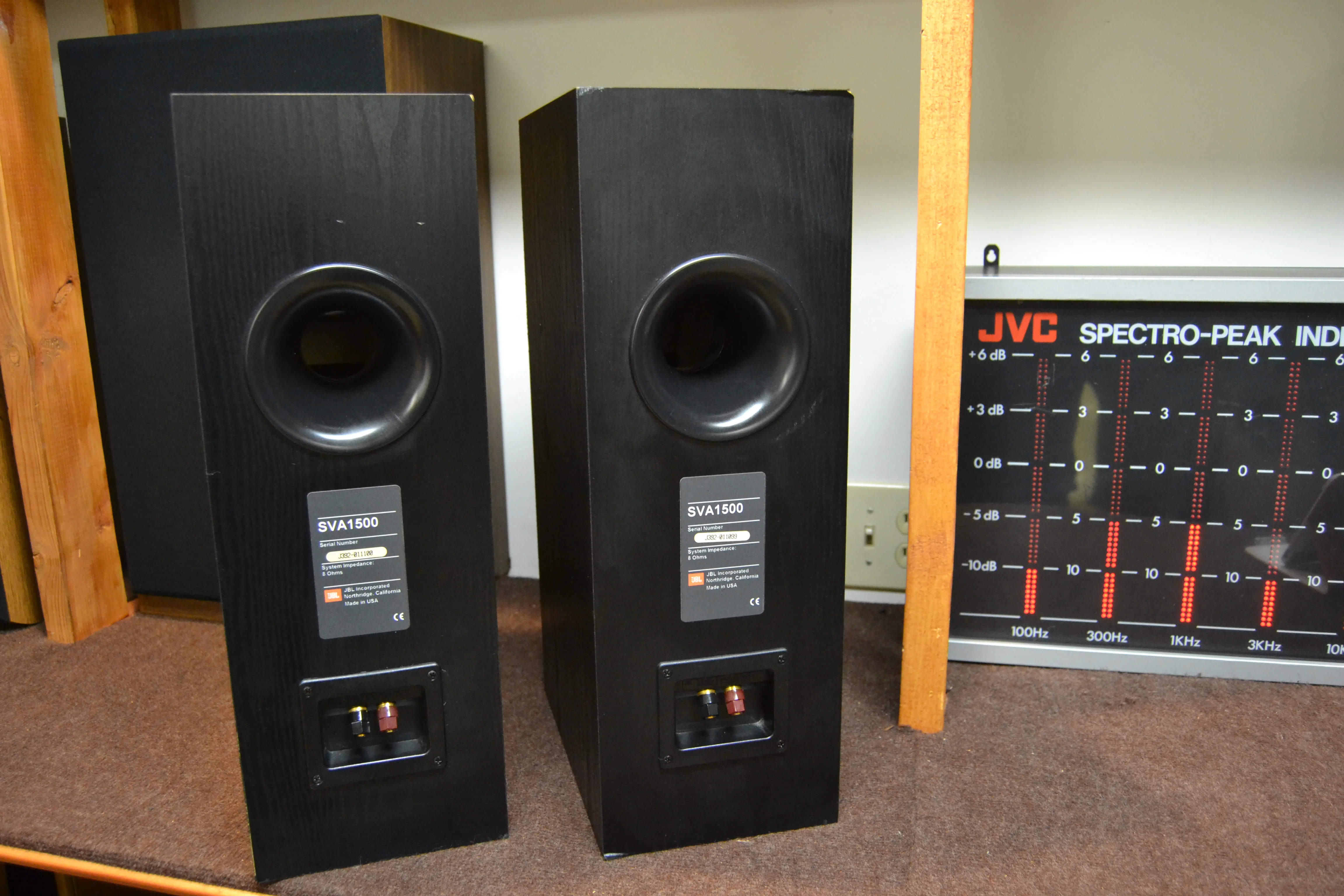

The enclosure uses a bass reflex system.
On the exterior, the opening of the biradial horn has a Bar-like grain and a black oak-like finish.

Method	2-way, 3-speaker, bass reflex system, bookshelf type, magnetic protection design
Units, etc.	For low band : 13.3 cm cone x2 For High Frequency : Horn Type
Frequency characteristic	45 hz to 20 khz -6dB
Output sound pressure level	88dB/W/m
Impedance	8 Ω
Allowable input	150W(RMS)
Crossover frequency	-
External dimensions	Width 173x Height 508x Depth 283 mm
Weight	11.4kg
