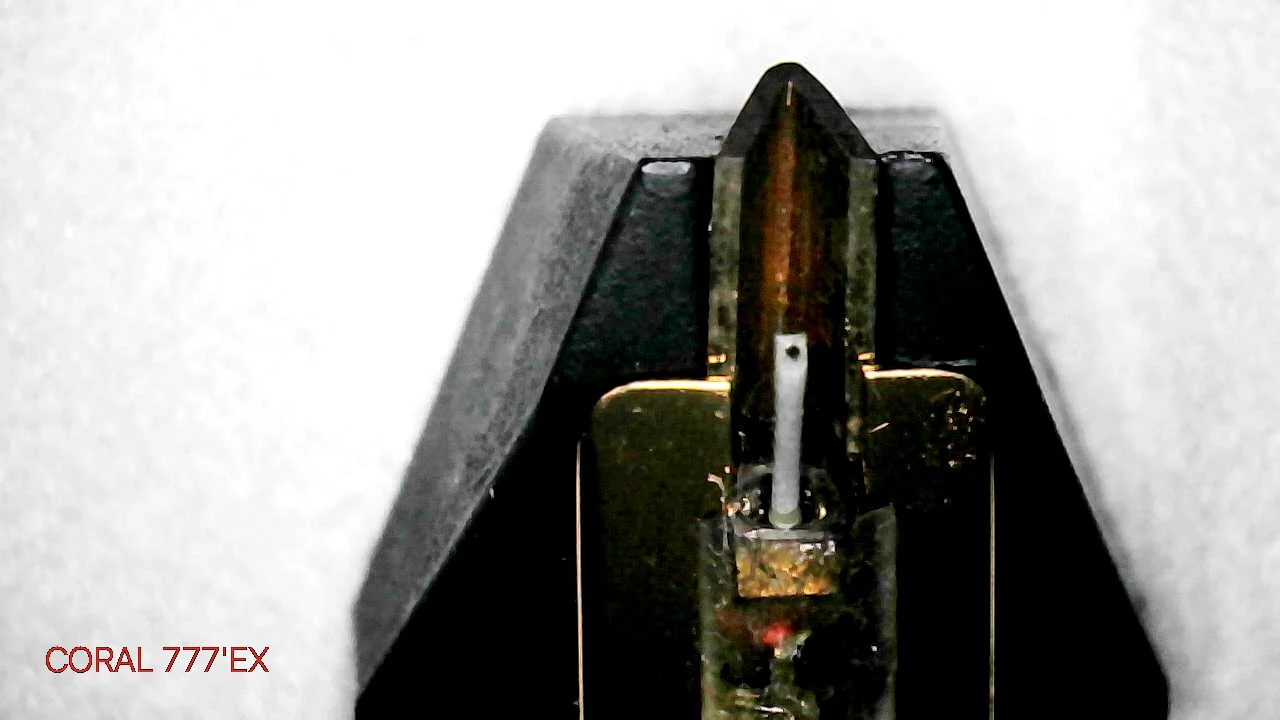

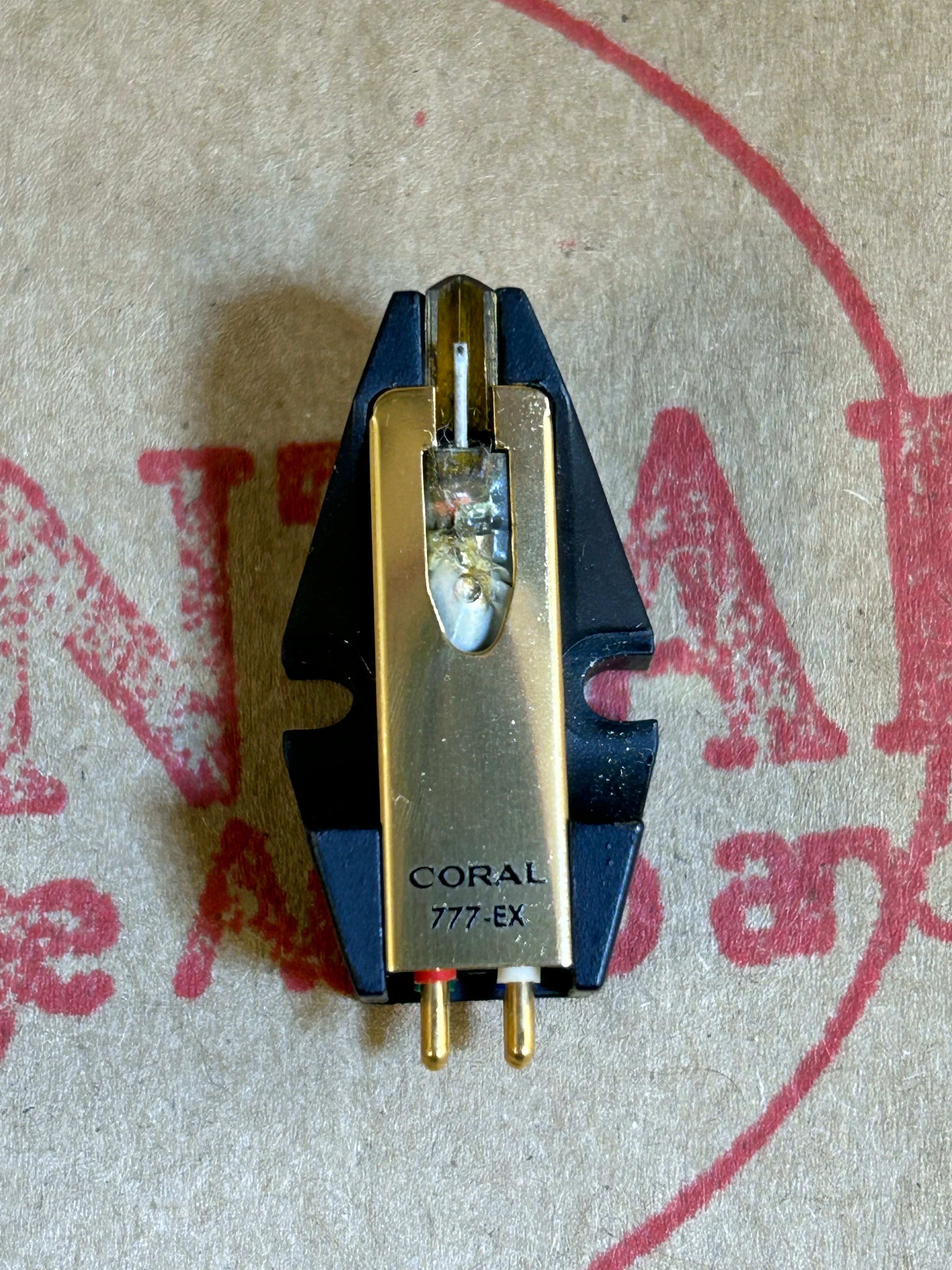

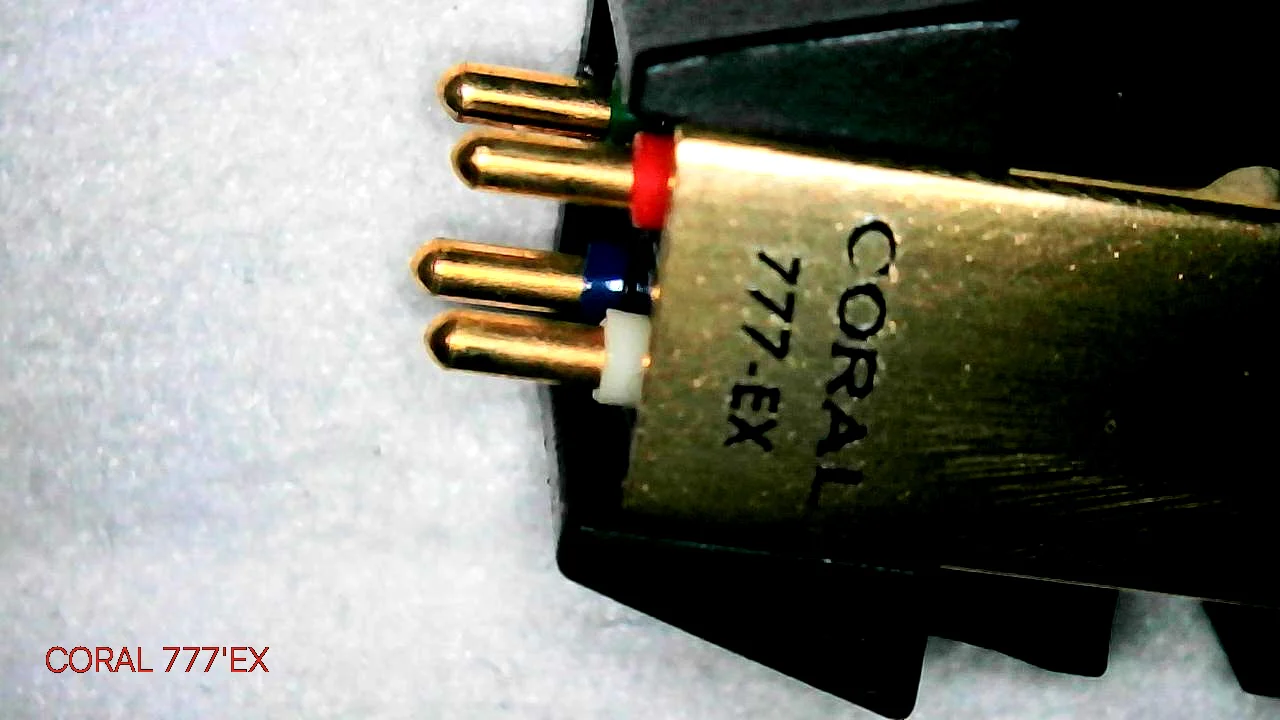

Coral 777

Moving-Coil Phono Cartridge

Description

The Coral 777 series stereo cartridges are high performance cartridges which use moving coils for electrical generation.

Specifications

Type: moving coil

Frequency response: 5 to 40,000Hz (EX), 10 to 35,000Hz (E, S)

Output voltage: 0.3mV

Channel separation: 34dB (EX), 27dB (E), 25dB (S)

Impedance: 6 ohms

Tracking force: 1.3 to 2.3g

Stylus tip: 0.2 to 0.8 mil (EX, E), 0.6 mil (S)

Load impedance: 20 to 100 ohms

Weight: 5.5g
